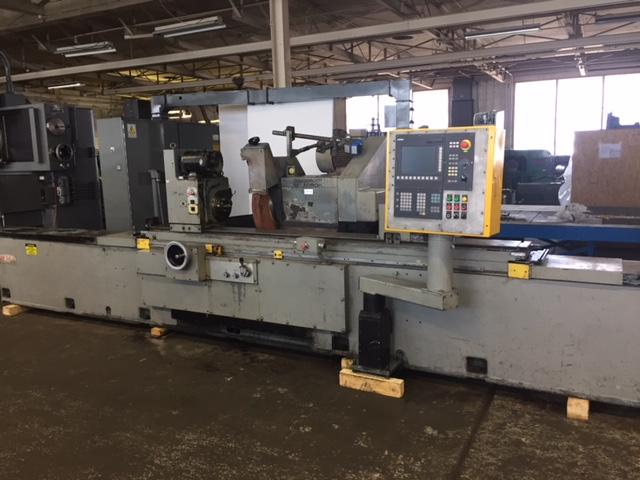

CINCINNATI MILACRON 14" X 96" EC III CNC CYLINDRICAL GRINDING MACHINE

SERIAL NO. 35384H81-0001RETROFITTED 2013STOCK NO. 6526

MACHINE JUST ARRIVED

CATALOG SPECIFICATIONS:
MAXIMUM SWING OVER TABLE: 14-15/16"
NOMINAL DISTANCE BETWEEN CENTERS: 96"
GRINDING WHEEL HEAD: 30" x 4" x 12" HOLE
SPINDLE SPEED: 30" DIAMETER-828 RPM OR 24" DIAMETER-1035 RPM
TAPER HOLE HEADSTOCK AND FOOTSTOCK: NO. 14 JARNO
WORK ROTATION SPEEDS-INFINITE: 8 - 465 RPM
TABLE TRAVERSE RATE-INFINITE: 3-220 IPM
APPROXIMATE LOAD BETWEEN CENTERS: 1500 LBS.
APPROXIMATE FLOOR SPACE-MACHINE: 260" x 96"
APPROXIMATE FLOOR SPACE-ELECTRICAL PANEL: 72" x 18" x 84" HIGH
APPROXIMATE WEIGHT: 25,000 LBS.

EQUIPPED WITH:

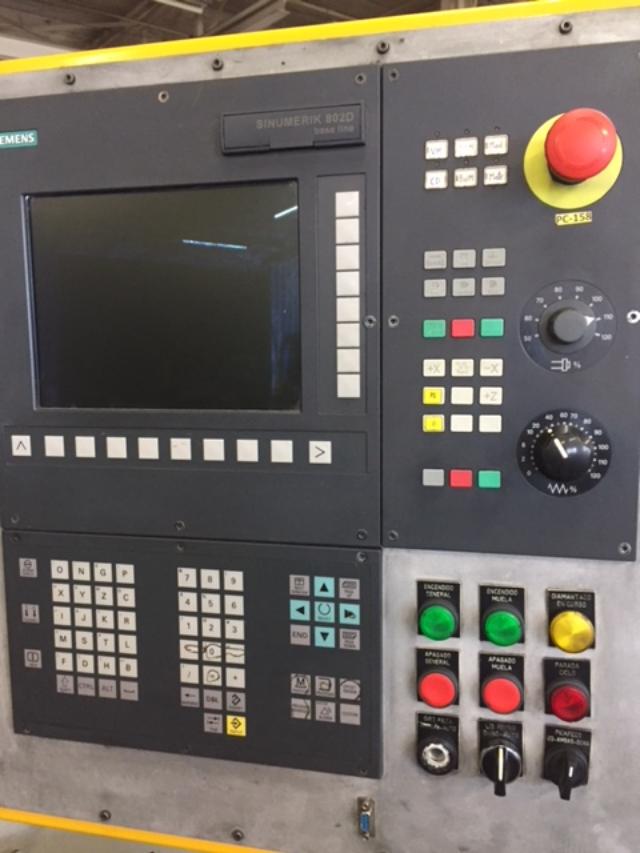

SIEMENS SINUMERIK 802D CNC CONTROL (INSTALLED 2013)
25 HP WHEEL HEAD MOTOR
BEHIND THE WHEEL PROFILE TRUING
LIVE OR DEAD HEADSTOCK SETTING
AUTOMATIC WHEEL BALANCING WITH FILMATIC SPINDLE BEARING
COOLANT SYSTEM
TABLE TRIP DOGS
HYDRAULIC SYSTEM
WAY COVERS AND MISC. SPLASH GUARDING

MACHINE MAY BE INSPECTED UNDER POWER
