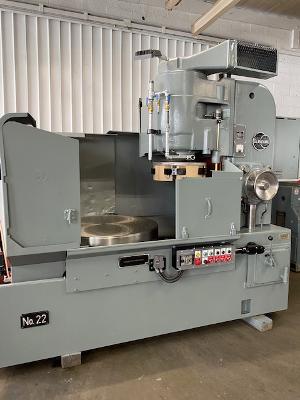

RECONDITIONEDSTOCK NO. 6578
NOW RECONDITIONED & READY TO GO!
FOR A VIDEO OF THIS MACHINE:
CATALOG SPECIFICATIONS:
DIAMETER OF MAGNETIC CHUCK:
42"
GRINDING WHEEL DIAMETER: 22"
MAXIMUM DISTANCE UNDER NEW WHEEL: 24"
TABLE SPEEDS: (6) 6 - 33 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD:
.004 - .080 IPM
APPROX. OVERALL WEIGHT: 14,000 LBS.
APPROX. OVERALL DIMENSIONS: 143" x 60" x 104" HIGH
EQUIPPED WITH:
CORTLAND STYLE SEGMENTED WHEEL ADAPTER
NEUTROFIER VARIABLE MAGNETIC CHUCK CONTROL
50 HP SPINDLE DRIVE MOTOR
WHEEL DRESSER
HARDENED BEDWAYS
BIJUR LUBRICATION SYSTEM FOR SADDLE TRAVERSE
1 HP COOLANT PUMP
MISC. SPLASH GUARDING
