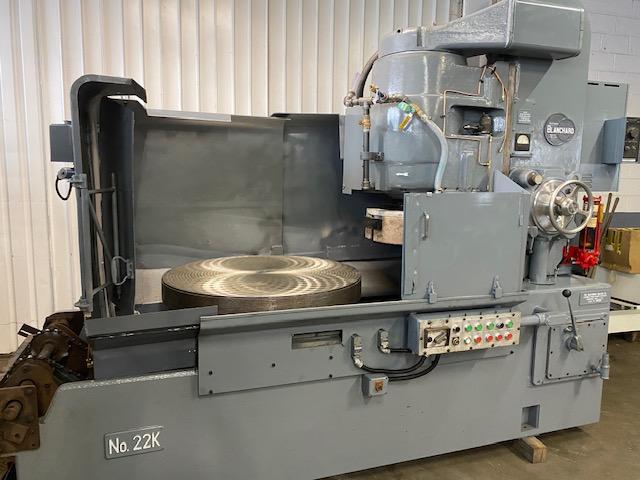

RECONDITIONEDSTOCK NO. 6591A
NOW RECONDITIONED AND READY TO GO!
FOR A VIDEO OF THIS MACHINE:
CATALOG SPECIFICATIONS:

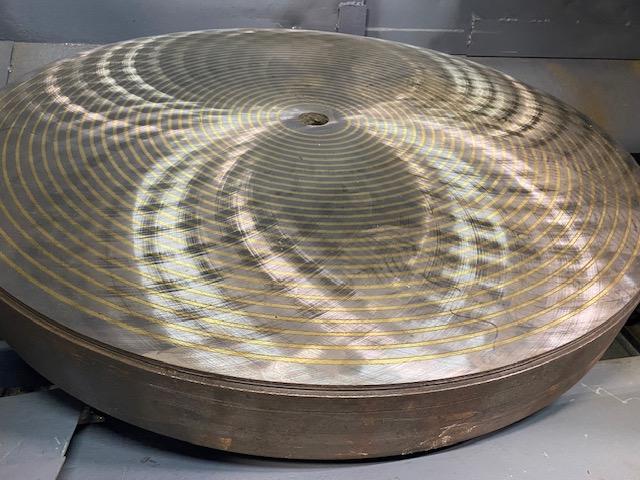

DIAMETER OF MAGNETIC CHUCK:
42"
GRINDING WHEEL DIAMETER: 22"
MAXIMUM DISTANCE UNDER NEW WHEEL: 24"
TABLE SPEEDS: (6) 6 - 33 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD:
.004 - .080 IPM
APPROX. OVERALL WEIGHT: 14,000 LBS.
APPROX. OVERALL DIMENSIONS: 143" x 60" x 104" HIGH
EQUIPPED WITH:
REBUILT 50 HP GRINDING SPINDLE (BEARINGS & WINDINGS)
CORTLAND STYLE SEGMENTED WHEEL ADAPTER
NEUTROFIER MAGNETIC CHUCK CONTROL
WHEEL DRESSER
DRAG-OUT CONVEYER WITH NEW CHAIN
RESURFACED HARDENED BEDWAYS
SCRAPED SADDLE WAY SURFACES TO NEW WAYS
SCRAPED TABLE ROTATION WAYS
TRABON LUBRICATION SYSTEM WITH NEW LUBE LINES FOR COLUMN
BIJUR LUBRICATION SYSTEM FOR SADDLE TRAVERSE WITH NEW LUBE LINES
NEW GREASE LUBE LINES FOR HEAD
NEW LUBE LINES FOR SADDLE TRAVERSE
GRIND TABLE FLAT
MACHINE PAINTED
COOLANT PUMP
