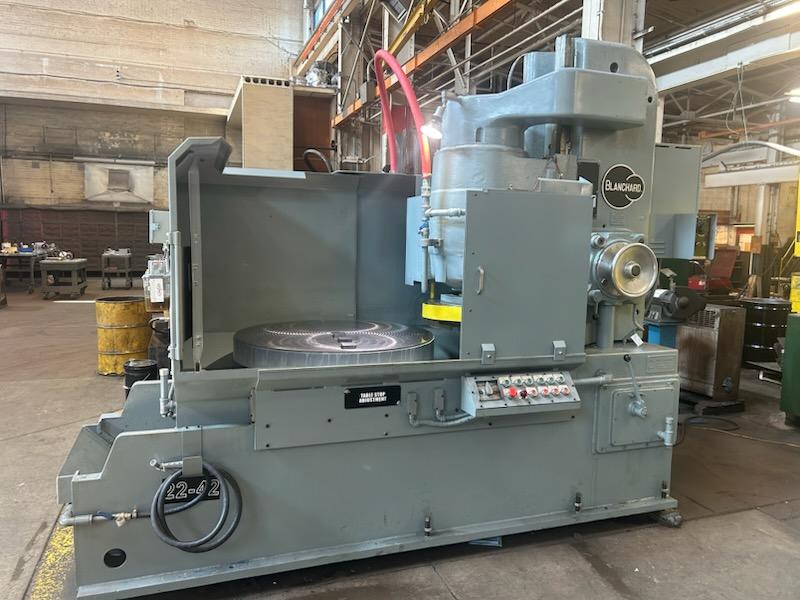

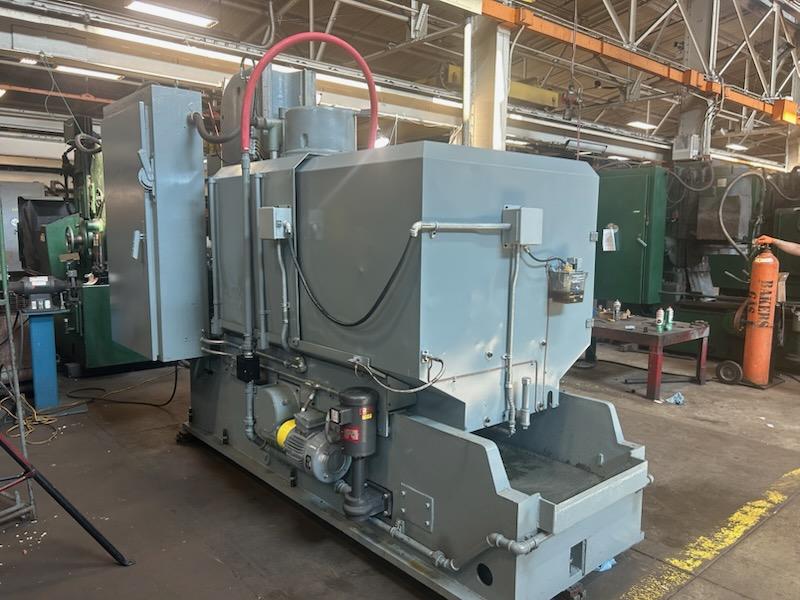

RECONDITIONEDSTOCK NO. 6605
NOW RECONDITIONED AND READY TO GO!
FOR A VIDEO OF THIS MACHINE: https://www.youtube.com/watch?v=TslnJuuPQn8
CATALOG SPECIFICATIONS:
DIAMETER OF MAGNETIC CHUCK:
42"
GRINDING WHEEL DIAMETER: 22"
MAXIMUM DISTANCE UNDER NEW WHEEL: 24"
TABLE SPEEDS: (6) 6 - 33 RPM
HAND AND POWER ELEVATION TO WHEEL HEAD
AUTOMATIC DOWNFEED TO WHEEL HEAD:
.004 - .080 IPM
APPROX. OVERALL WEIGHT: 14,000 LBS.
APPROX. OVERALL DIMENSIONS: 143" x 60" x 104" HIGH
EQUIPPED WITH:
REBUILT 50 HP GRINDING SPINDLE (BEARINGS & WINDINGS)
NEW LOAD METER
CORTLAND STYLE SEGMENTED WHEEL ADAPTER
NEUTROFIER MAGNETIC CHUCK CONTROL WITH VARIABLE CONTROL
WHEEL DRESSER
NEW HARDENED BEDWAYS
HAND SCRAPED SADDLE TO NEW WAYS
HAND SCRAPED TABLE TO MAGNET
INSTALLED NEW LUBRICATION SYSTEM WITH NEW LUBE LINES FOR COLUMN
NEW LUBE LINES FOR SADDLE TRAVERSE
NEW LUBE PUMP FOR SADDLE
REMOVE & ADJUST UPPER FEED BOX
INSPECTED & CLEANED SADDLE TRANSMISSION
REBUILT PINION & BEVEL GEAR SET FOR SADDLE
GRIND TABLE FLAT
MACHINE CLEANED & PAINTED
TRAM HEAD TO TABLE
8 HOUR TEST RUN
GRIND FLAT PARTS
NEW LEVELING PADS
REWORKED & REPLACED SOME WATER GUARDS
ADDED WORK LIGHT TO HOOD
REPLACED ELECTRICAL CONDUIT
ALL NEW COOLANT LINES & ROSS VALVE
NEW COOLANT PUMP
