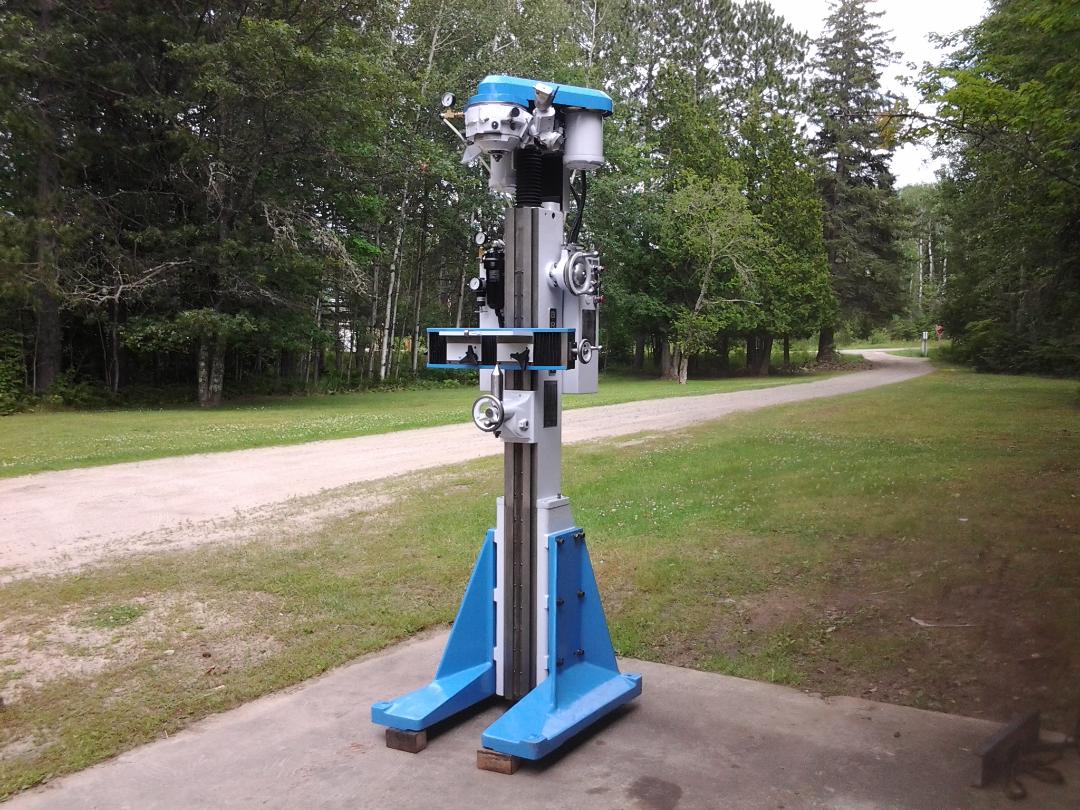

STOCK NO. 6538
CATALOG SPECIFICATIONS:
WORKPIECE LENGTH: 2" TO 108"
CLEARANCE FROM TAILSTOCK CENTER TO COLUMN:
6.2"
VISE CAPACITY: .060" - 6"
CONE ANGLE OF HOLES GROUND: 60 DEGREES
MAXIMUM CENTER HOLES GROUND: 2"
GRINDING SPINDLE SPEEDS (WITH CORRECT PULLEY): 13,000, 21,500 & 45,000 RPM
PLANETARY DRIVE SPEEDS:330 RPM
OVERALL DIMENSIONS (APPROX.): 40" x 32" x 140" HIGH
EQUIPPED WITH:
REBUILT WITH 6 MONTH WARRANTY
CONE DRESSER
ADJUSTABLE VISE-.060" to 6"
1/2 HP SPINDLE DRIVE MOTOR
MISC. OPERATOR PLATFORM
