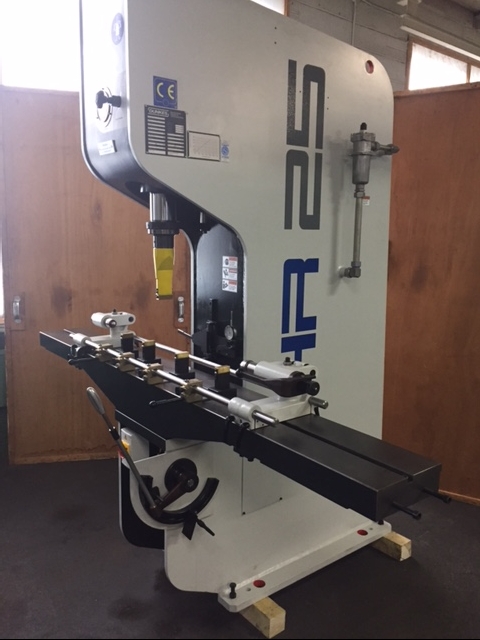

CATALOG SPECIFICATIONS:
CAPACITY: 27.5 TONS
STROKE: 6"
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 6-1/4"
DAYLIGHT: 26-1/2"
DEPTH OF THROAT: 9-3/4"
RAM SPEED, DOWNWARDS: 75 IPM
RAM SPEED, UPWARDS: 247 IPM

EQUIPPED WITH:

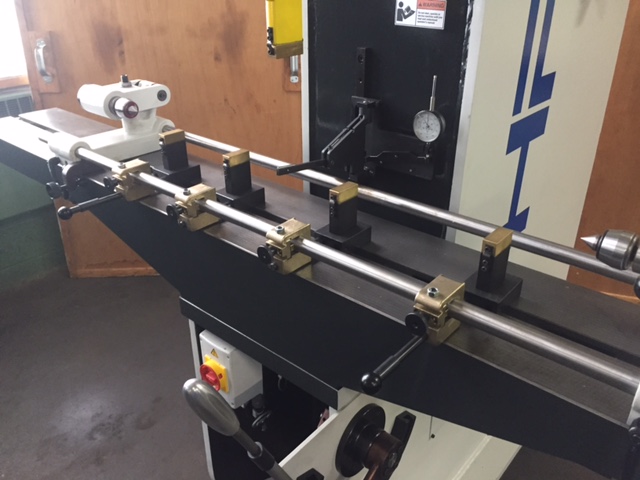

ROLLING FIXTURE WITH 51" CENTERS
10" X 51" MAIN TABLE
(2) 19-3/4 TABLE EXTENSIONS
(4) MOVABLE ANVILS
(1) SWING AWAY MEASURING BRACKET
6 HP HYDRAULIC MOTOR
OPERATOR'S MANUAL & ELECTRICAL SCHEMATIC

MORE TABLE EXTENSIONS AND MISC. EITEL TOOLING AVAILABLE ON REQUEST

MACHINE MAY BE INSPECTED UNDER POWER

ROBERTS MACHINERY SALES LTD.
930 E. DRAYTON, FERNDALE, MI 48220
TEL: (248)543-4466

E-mail:rmsused@aol.com
