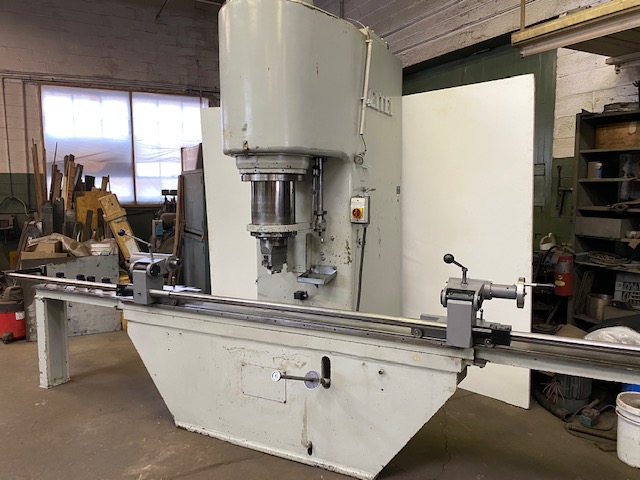

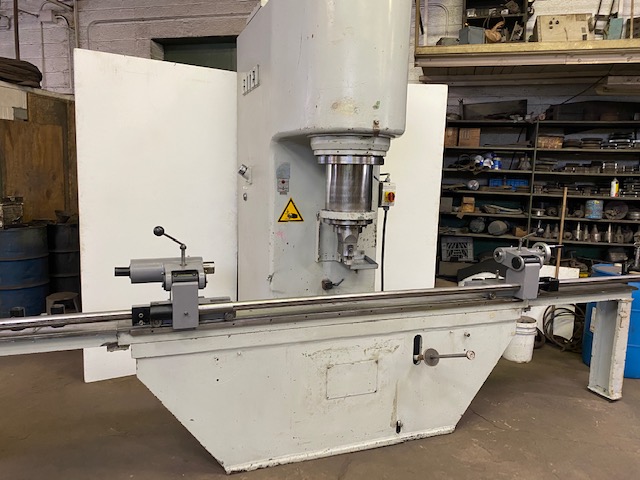

CATALOG SPECIFICATIONS:
CAPACITY: 175 TONS
STROKE: 8"
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 7/8"
DAYLIGHT: 31-1/2"
DEPTH OF THROAT: 13-3/4"
RAM SPEED, DOWNWARDS: 90 IPM
RAM SPEED, UPWARD: 375 IPM

EQUIPPED WITH:
ROLLING FIXTURE WITH CENTERS
11" X 59" MAIN TABLE
(2) 11" x 39" TABLE EXTENSIONS
MISC. ANVILS & MEASURING BRACKETS
25 HP MAIN HYDRAULIC MOTOR

MORE TABLE EXTENSIONS AND MISC. EITEL TOOLING AVAILABLE ON REQUEST

MACHINES MAY BE INSPECTED UNDER POWER
