FOR A VIDEO OF THIS MACHINE: https://youtu.be/3_JvdUbQ6zc

CATALOG SPECIFICATIONS:
CAPACITY: 275 TONS
STROKE: 10"
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 7/8"
DAYLIGHT: 31.5"
DEPTH OF THROAT: 17-3/4"
RAM SPEED, DOWNWARDS: 60 IPM
RAM SPEED, UPWARDS: 215 IPM
BASE TABLE DIMENSIONS: 13-3/4" x 55"
OVERALL DIMENSIONS: 55" R-L x 81" F-B x 118" HIGH
APPROX. WEIGHT: 19,400 LBS.

EQUIPPED WITH:
LEVER CONTROLLED RAM WITH STROKE ADJUSTMENT
OPERATOR'S CONTROL PANEL

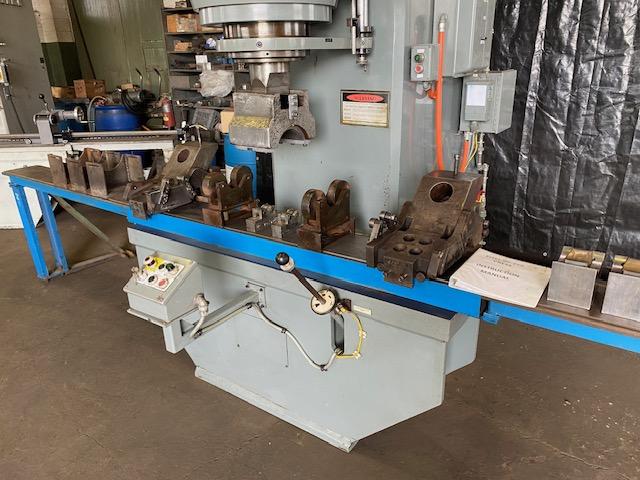

ROLLING FIXTURE AND CARS WITH ROLLER TOPS
(2) 58" TABLE EXTENSIONS
ROLLING FIXTURE BARS FOR CARS
RAM ANVIL
MISC. TABLE MOUNTED ANVILS
10-5/8" x 78" MAIN TABLE
72" x 16" BASE TABLE
30 HP HYDRAULIC MOTOR

MORE TABLE EXTENSIONS AND MISC. EITEL TOOLING AVAILABLE ON REQUEST

MACHINE MAY BE INSPECTED UNDER POWER
