FOR A VIDEO OF THIS MACHINE:

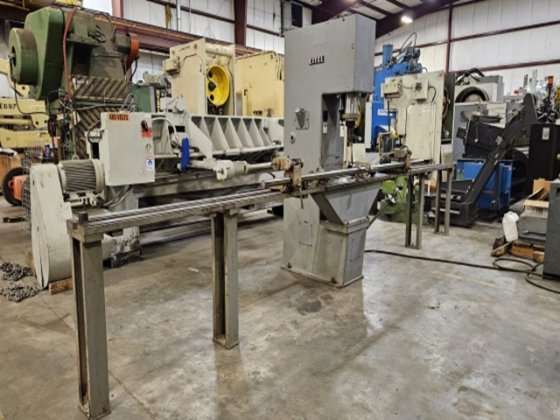

CATALOG SPECIFICATIONS:
CAPACITY: 44 TONS
STROKE: 6"
STRAIGHTENING STROKE, CONTROLLABLE & ADJUSTABLE: 7/8"
DAYLIGHT: 34"
DEPTH OF THROAT: 10"
RAM SPEED, DOWNWARDS: 70 IPM
RAM SPEED, UPWARDS: 170 IPM

EQUIPPED WITH:

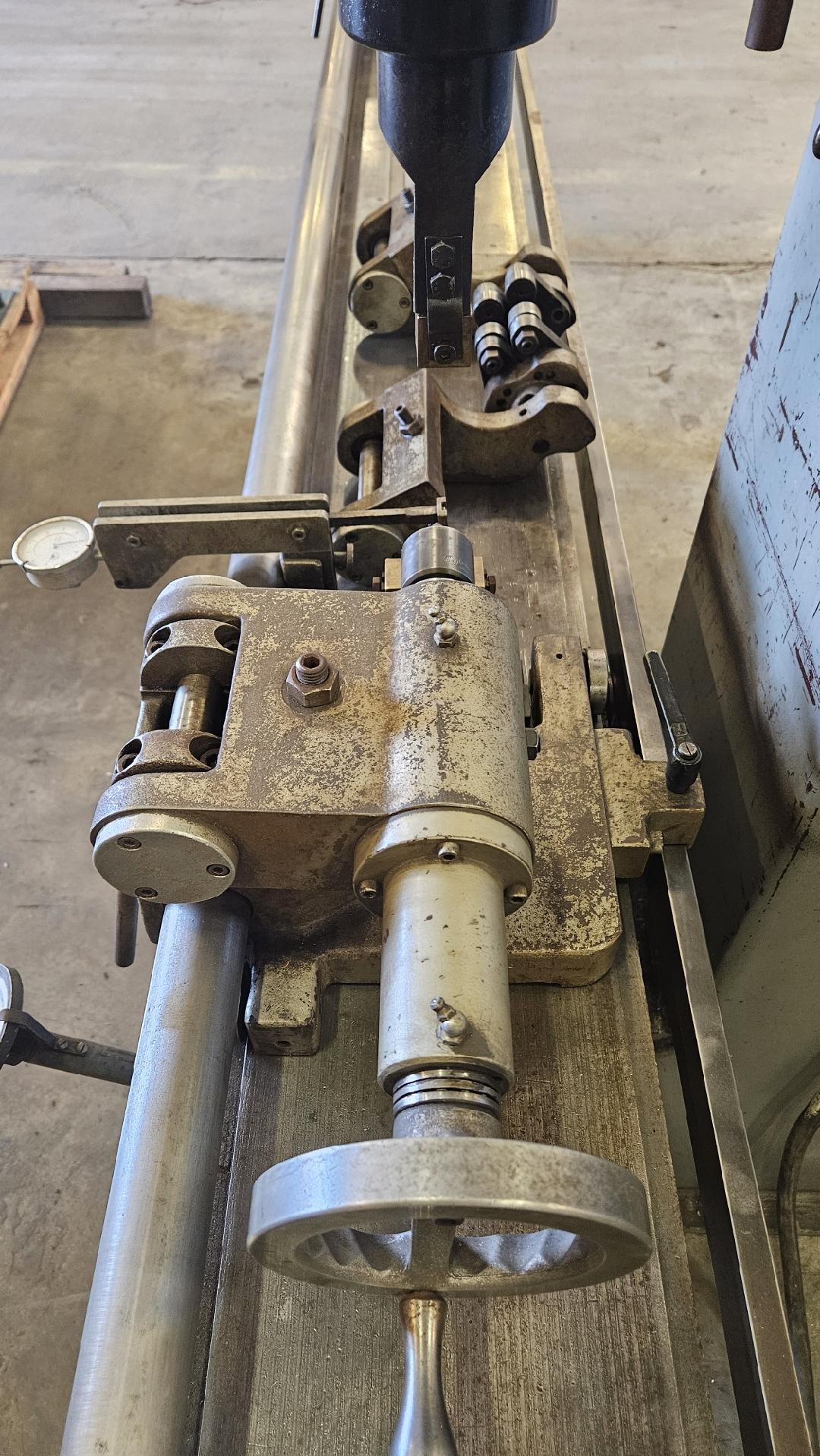

WR-2 ROLLING FIXTURE WITH BOTH CENTER TOPS AND ROLLER TOPS
11" X 55" MAIN TABLE
(4) 39" TABLE EXTENSION
(2) TRAVELING ANVILS
(1) MEASURING BRACKETS WITH INDICATOR
7.5 HP HYDRAULIC MOTOR

MISC. EITEL TOOLING AVAILABLE ON REQUEST

MACHINE MAY BE INSPECTED UNDER POWER
