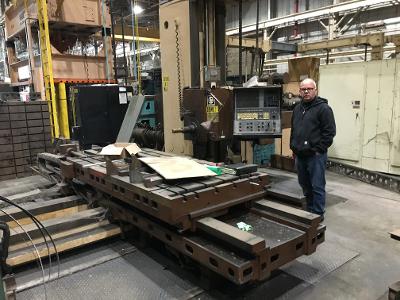

BUILT 1985, RETROFITTED 2001STOCK NO. ZS125
CATALOG SPECIFICATIONS:
SPINDLE DIAMETER: 5"
SPINDLE TAPER: 50 TAPER
VERTICAL HEAD TRAVEL, Y-AXIS: 60"
TABLE TRAVEL CROSS, X-AXIS: 96"
SADDLE TRAVEL IN-OUT, Z-AXIS: 48"
SPINDLE TRAVEL, W-AXIS: 36"
TABLE SIZE: 48" x 96"
SPINDLE SPEEDS: 5.6 - 1120 RPM
FEEDS, RAPID X,Y & Z AXES: 150 IPM
FEEDRATES, CUTTING X,Y,Z & W AXES: .1 - 100 IPM
APPROX MACHINE FOOTPRINT: 192" x 192"
APPROX. MACHINE HEIGHT: 160"
APPROX. MACHINE WEIGHT: 50,000 LBS
EQUIPPED WITH:
GIDDINGS & LEWIS 8000 CNC CONTROL UPDATED 2001
ALLEN BRADLEY DRIVES
DOUBLE OUTRIGGERS ON EACH SIDE OF TABLE FOR SUPPORT
BALL SCREWS
POWER DRAW BOLT
HARDENED BED WAYS ON BED AND SADDLE
25 HP SPINDLE MOTOR
