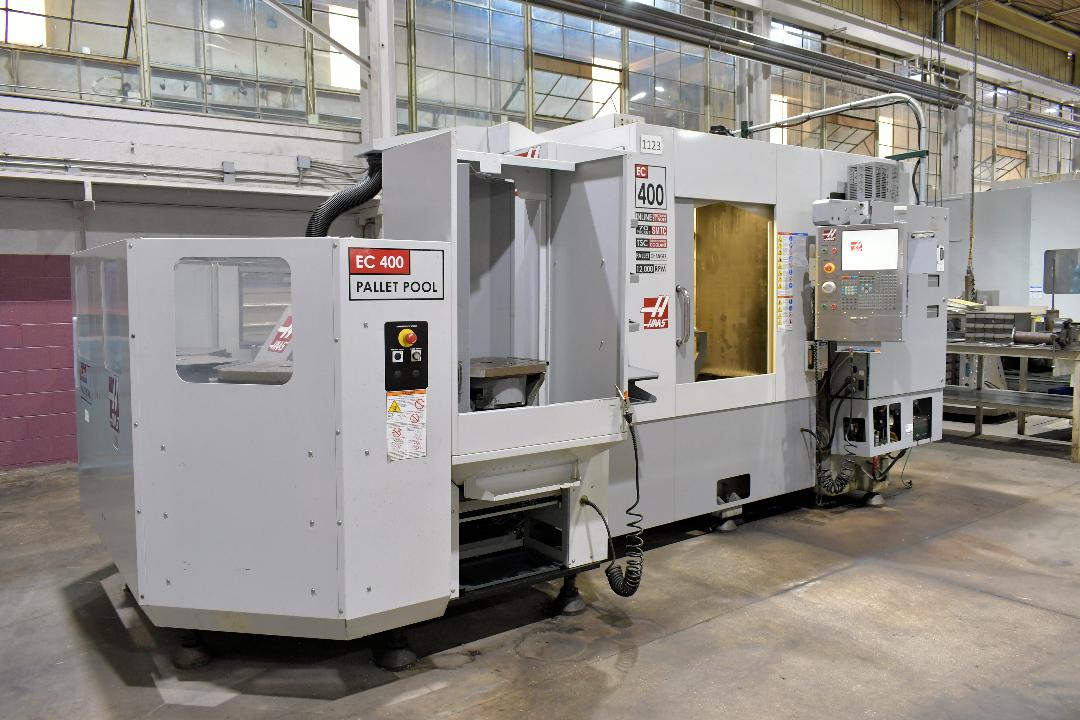

HAAS MODEL EC-400PP HORIZONTAL MACHINING CENTER WITH 6 STATION PALLET POOL

SEE IN PLANT, UNDER POWERBUILT 2008VERY CLEAN!


CATALOG SPECIFICATIONS:
 PALLET SIZE: 15.75" x 15.75"
X-AXIS TRAVEL: 20"
Y-AXIS TRAVEL: 20"
Z-AXIS TRAVEL: 20"
NUMBER OF PALLETS: 2 IN MACHINE + 6 PALLET POOL
MAXIMUM PALLET LOAD: 1000 LBS SPINDLE TAPER: CAT 40
SPINDLE SPEEDS: 50 - 12,000 RPM
RAPID TRAVERSE: 1000 IPM (X/Y/Z)
MAXIMUM CUTTING FEEDRATE: 500 IPM

EQUIPPED WITH:
70 POSITION SIDE MOUNTED TOOL CHANGER
30 HP VECTOR DRIVE
MULTI-AUGER CHIP SYSTEM WITH HENNIG MOTORIZED DISCHARGE CHIP CONVEYOR
300 PSI THRU TOOL SPINDLE COOLANT


MACHINE IN PLANT, UNDER POWER
