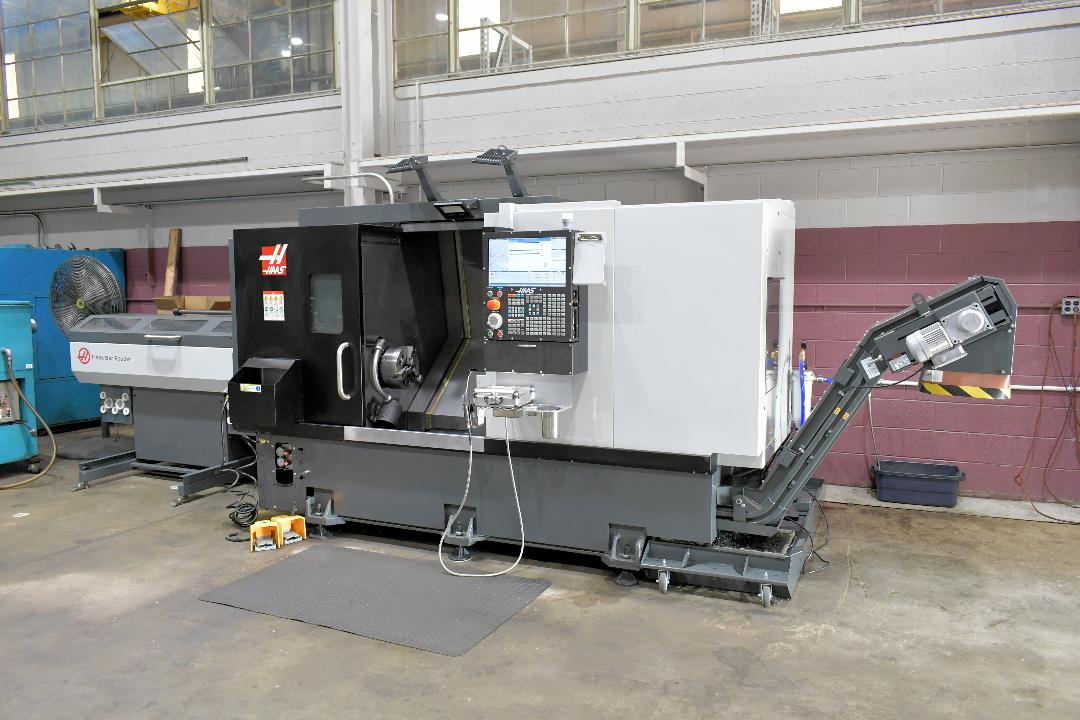

BUILT 2025LIKE NEW!
CATALOG SPECIFICATIONS:
MAXIMUM SWING: 21"
MAXIMUM CUTTING DIAMETER: 15"
MAXIMUM MACHINING LENGTH: 32.5"
BAR CAPACITY: 3"
SPINDLE BORE: 3.5"
RAPID FEED RATES X & Z-AXIS: 945 IPM
X-AXIS TRAVEL: 9.4"
Z-AXIS TRAVEL: 32.5"
SPINDLE NOSE: A2-6
SPINDLE SPEEDS-INFINITE: 50 - 3400 RPM
MAXIMUM THRUST X: 4100 LBF
MAXIMUM THRUST Z: 5100 LBF
MAXIMUM TORQUE: 300 FT-LBF @ 500 RPM
NUMBER OF TOOLS: 12
QUILL TAPER HOLE: NO. 6 MT
MACHINE DIMENSIONS: 171" x 90" x 98" (WITHOUT BARFEED)
MACHINE WEIGHT: 10,900 LBS. APPROX.
EQUIPPED WITH:
HAAS CONTROL (2025 VERSION)
HAAS V2 AUTOMATIC BARFEEDER 0.375" - 3" X 48" BAR CAPACITY WITH TRAY FOR UP TO (30) 1" BARS
PROGRAMMABLE TAILSTOCK
CHIP CONVEYOR WITH DISCHARGE
HAAS COOLANT SANITIZER
55 GALLON COOLANT TANK & PUMP
AUTOMATIC TOOL PRESETTER
10" 3 JAW CHUCK
RIGID TAPPING
PARTS CATCHER
30 HP SPINDLE MOTOR
POWER SURGE PROTECTION
ETHERNET INTERFACE
