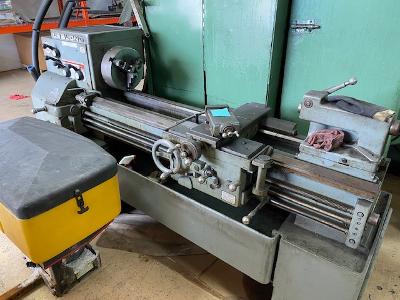

BUILT APPROX. 1960STOCK NO. AM245
CATALOG SPECIFICATIONS:
MAXIMUM SWING OVER BED: 14"
MAXIMUM DISTANCE BETWEEN CENTERS: 42"
X-AXIS TRAVEL: 8-7/8"
Z-AXIS TRAVEL: 42"
BAR CAPACITY: 1-13/32"
SPINDLE SPEEDS: 45 - 1800 RPM
FEED RANGE: .OO18 - .106 IPR
THREAD CHANGES: 4 - 224 TPI
MACHINE DIMENSIONS: 84" x 30" x 50" HIGH
MACHINE WEIGHT: 3000 LBS. APPROX.
EQUIPPED WITH:
10" 3 JAW CHUCK
MICRO STOP
THREAD DIAL
3 HP SPINDLE MOTOR
