BUILT APPROX. 1985STOCK NO. 6599
SUPER RARE MACHINE TOOL!
FOR A VIDEO OF THIS MACHINE:
CATALOG SPECIFICATIONS:

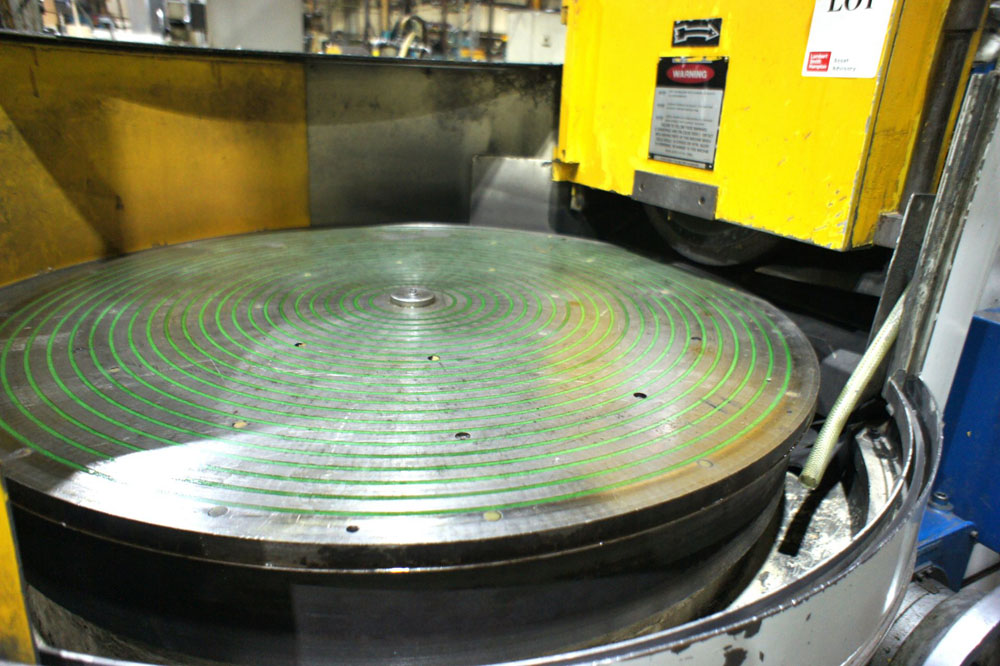

DIAMETER OF MAGNETIC CHUCK:
40"
MAXIMUM SWING INSIDE CHUCK GUARD: 44"
STANDARD WHEEL SIZE: 16" x 2" x 8" HOLE
MAXIMUM HEIGHT TO CENTER OF WHEEL: 17.5"
KNEE MAXIMUM VERTICAL TRAVEL: 12"
MAXIMUM ANGLE-CONVEX: 10 DEG
MAXIMUM ANGLE-CONCAVE: 10 DEG
TABLE SPEEDS-VARIABLE: 37 - 130 RPM
TABLE TRAVEL MAXIMUM:20"
TABLE TRAVERSE RATE: 0 - 15 FPM
APPROX. OVERALL WEIGHT: 13,000 LBS.
APPROX. OVERALL DIMENSIONS: 120" x 65" x 105" HIGH
EQUIPPED WITH:
NEUTROFIER VARIABLE MAGNETIC CHUCK CONTROL
20 HP SPINDLE DRIVE MOTOR WITH VARIABLE SPEED CONTROL
10 HP HYDRAULIC SYSTEM MOTOR
SERVO MOTORS FOR ALL AXES
WHEEL ADAPTER
NEW LUBRICATION SYSTEM
EXTERNAL COOLANT TANK WITH 1/4 HP PUMP
TABLE TRIP DOGS
MISC. SPLASH GUARDING
